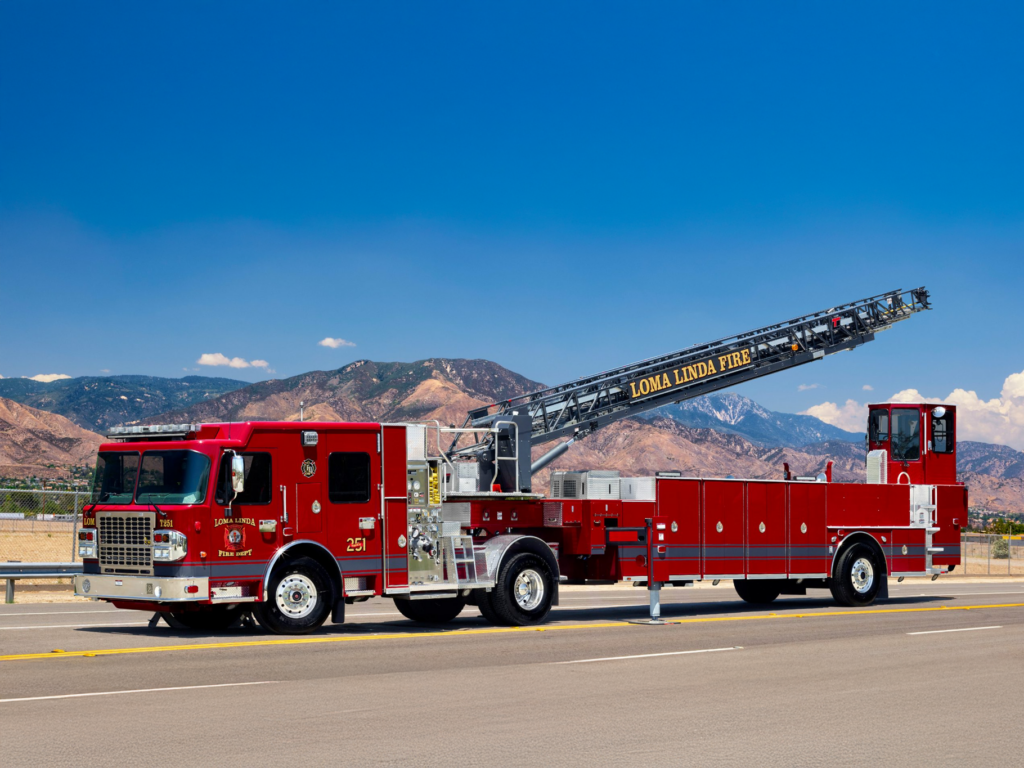

100′ Tractor Drawn Aerial
Ladder Tower’s 100′ TDA’s are designed for departments that call for a compact, highly maneuverable design, lots of equipment and ladder storage, a narrow stabilizer spread and excellent visibility. With lengths as short as 55’6″, and wheelbases starting at 143″ the TDA provides advantages you can truly appreciate.

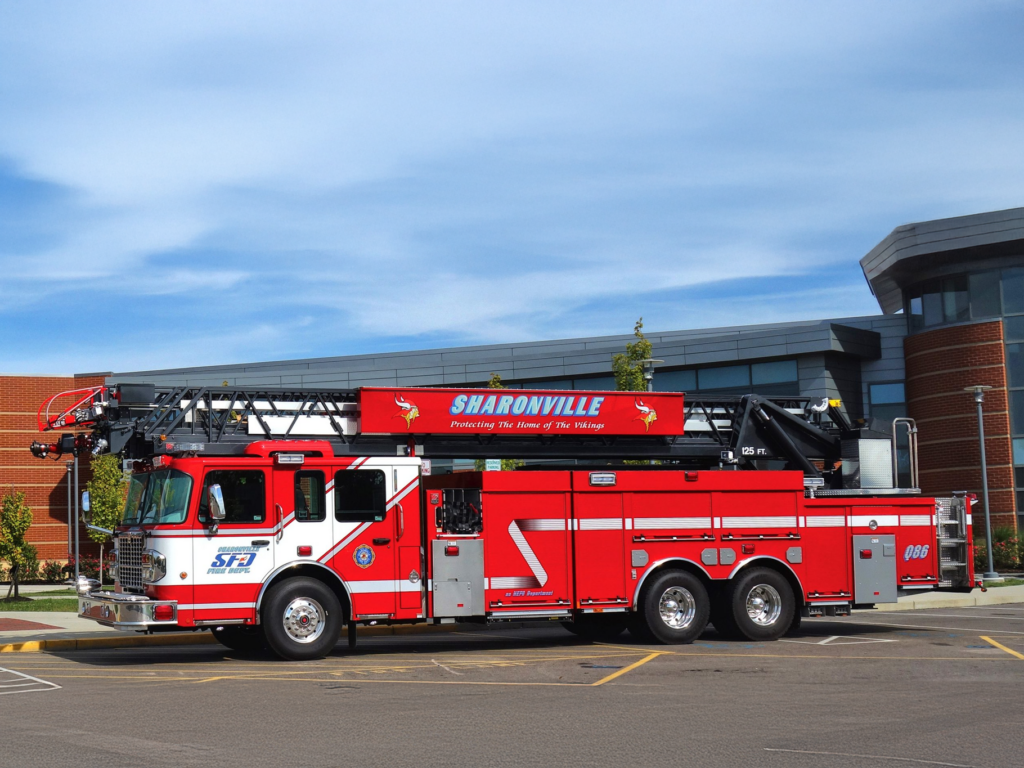

125′ Rear Mount Ladder
It’s all about reach with our 125′ Heavy Duty Aerial. This robust ladder has the longest horizontal reach available — 121′ at 0 degrees to make short work of large setbacks. Combine that with a tip load rating of 750 lbs. while flowing 1,500 gpm and no performance restrictions on a downhill slope due to the exclusive FP-4 stabilizer design. The standard operating range of -12 to 72 degrees ensures you can handle below-grade rescues as well as high-rise firefighting and rescues.

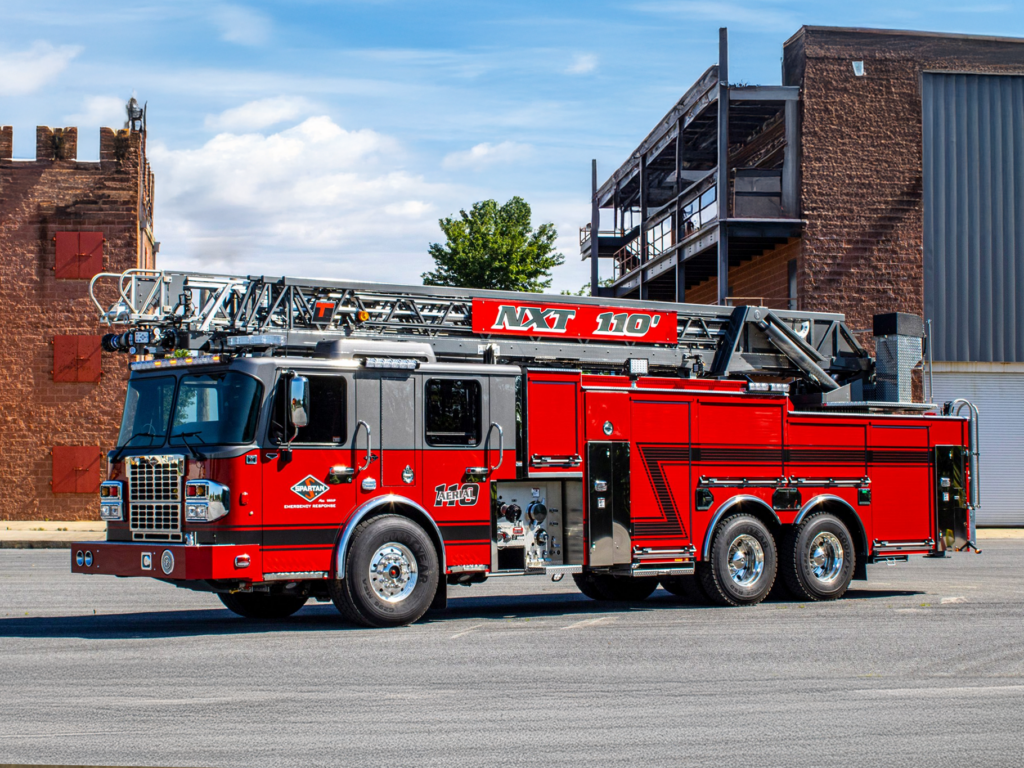

NXT 110′ Rear Mount Ladder
The NXT 110 aerial yields maximum and unrestricted performance with up to 750-pound tip load, at any angle and extension. This performance combined with a low profile pump and short overall length deliver unprecedented maneuverability without sacrificing compartment space or performance. With up to 2,250 GPM and a 500 gallon tank you get the power needed to manage any situation. The pump is positioned at the rear of the cab under the seat extension allowing for a full body pump, without taking up space inside the cab.

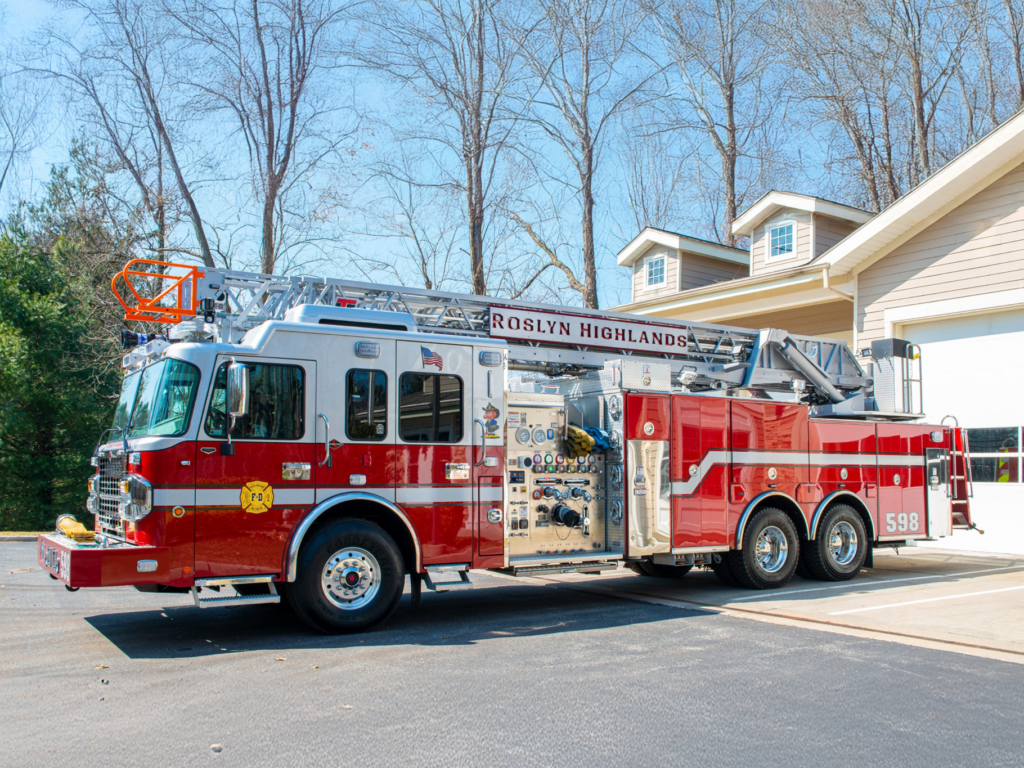

110′ Rear Mount Ladder
The Ladder Tower 110’ Rear Mount Ladder is available with a tip load capacity of 500 lbs. with a 12′ outrigger spread. The extreme duty model has a tip load capacity of 750 lbs. with a 14′ outrigger spread. All models are engineered for a narrow stabilizer spread to allow easier positioning and faster setup on narrow streets and other tight access areas. Its horizontal reach of 99′ is rated best in the industry.

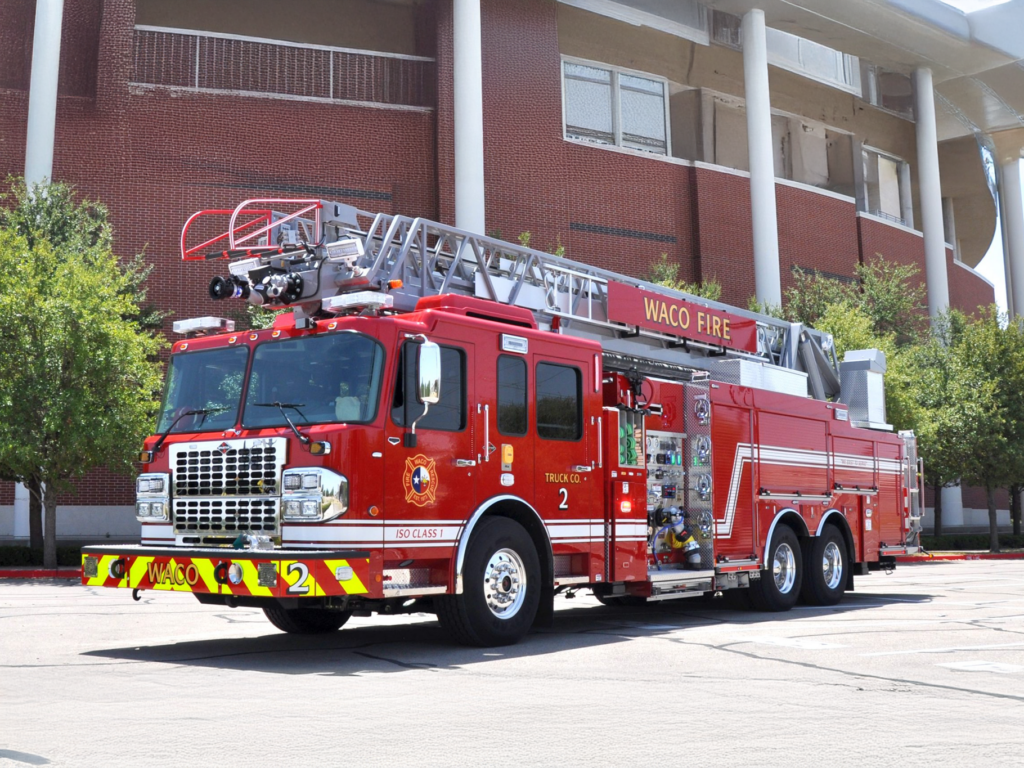

107′ Rear Mount Ladder
Count on our 107′ heavy-duty rear mount ladders for their robust design, 750 lbs. tip load (wet) at 0 degrees and excellent vertical reach. Available in a quint or traditional truck style, the 107’ rear mount ladder is configured with a unique outrigger design and placement that allow departments to achieve full operational capability on a 12-percent grade (downhill and uphill).

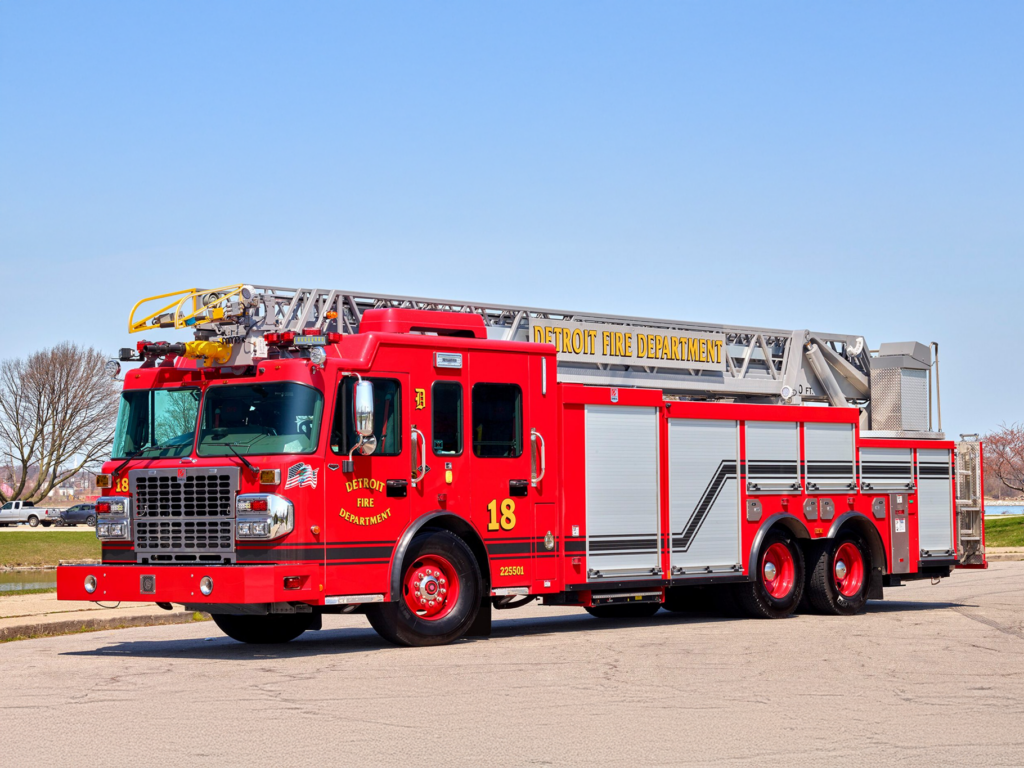

100′ Rear Mount Ladder
Low travle height with maximum reach so you can fit it into your fire station and under all the bridges, overpasses and aqueducts that stand in the way of a quick response. The 500 lb. tip load rating while flowing 1,250 GPM at zero degrees gives you all the firefighting power you need. Available with or without a pump and tank, you have the configuration flexibility for your next rear mount ladder while keeping your maximum reach and performance.

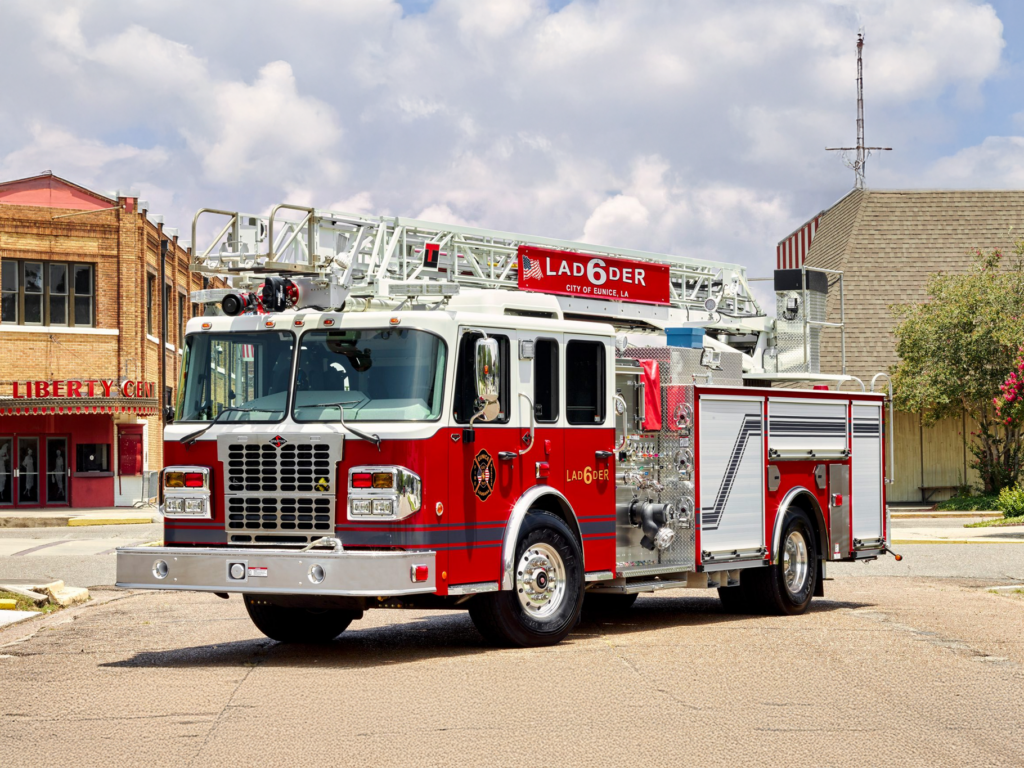

75′ Rear Mount Ladder
Built on wheelbases as short as 207”, this rugged aerial offers 75′ of vertical and 66’ of horizontal reach with a 500 lb tip load rating while flowing 1,500 GPM and an allowance for 100 lb of equipment at the tip. The overall height is 11’ 5” allowing this aerial to easily navigate low fire station doors, bridges and underpasses. The LT 75′ aerial features 500 gallon water tank, sideload hosebed capable of 1,000′ of 5″ LDH and low enclosed ladder storage that promotes quick, safe removal and easier handling for up to 115’ of ground ladders.

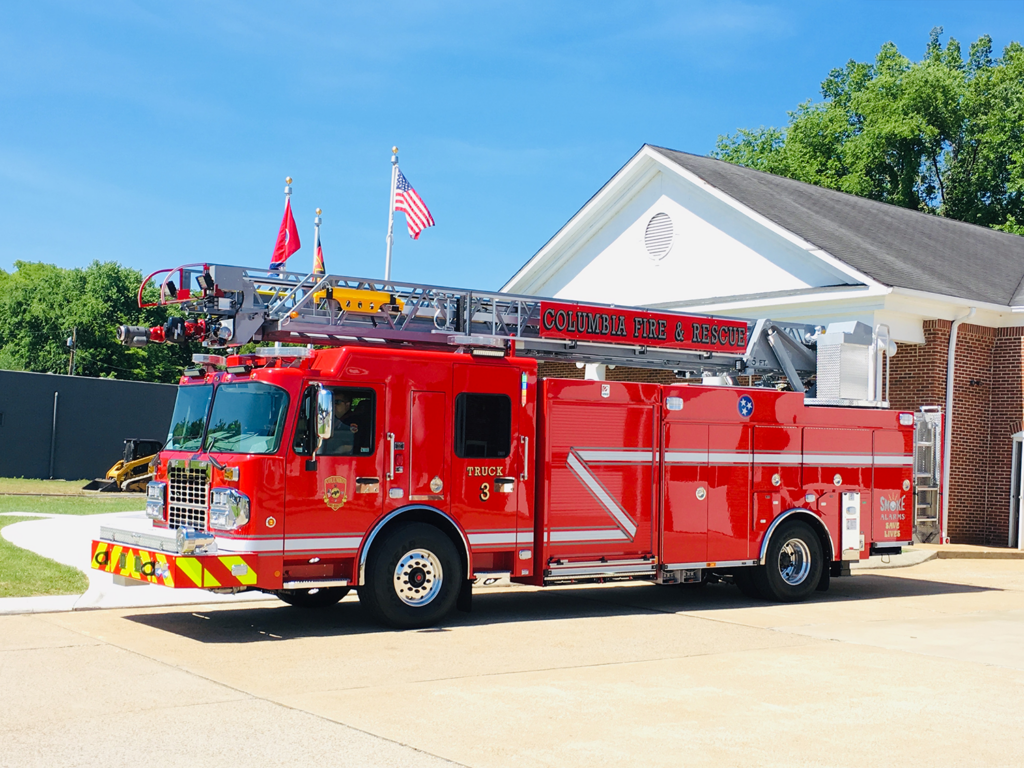

75′ Rear Mount Ladder
The 75’ Rear Mount Ladder, available on a single or tandem axle, is designed to be the centerpiece of your aerial attack and rescue operations. Built with 100,000 psi yield strength steel, this aerial workhorse provides up to 750 lb. tip load rating (wet), the ability to flow 1,500 GPM at 0 degrees elevation straight out to the side, and the solid “step feel” that all Spartan Aerials are known for. The 75’ Rear Mount Ladder on a single axle is available in two configurations that offer a 500 or 750 lb. tip load.

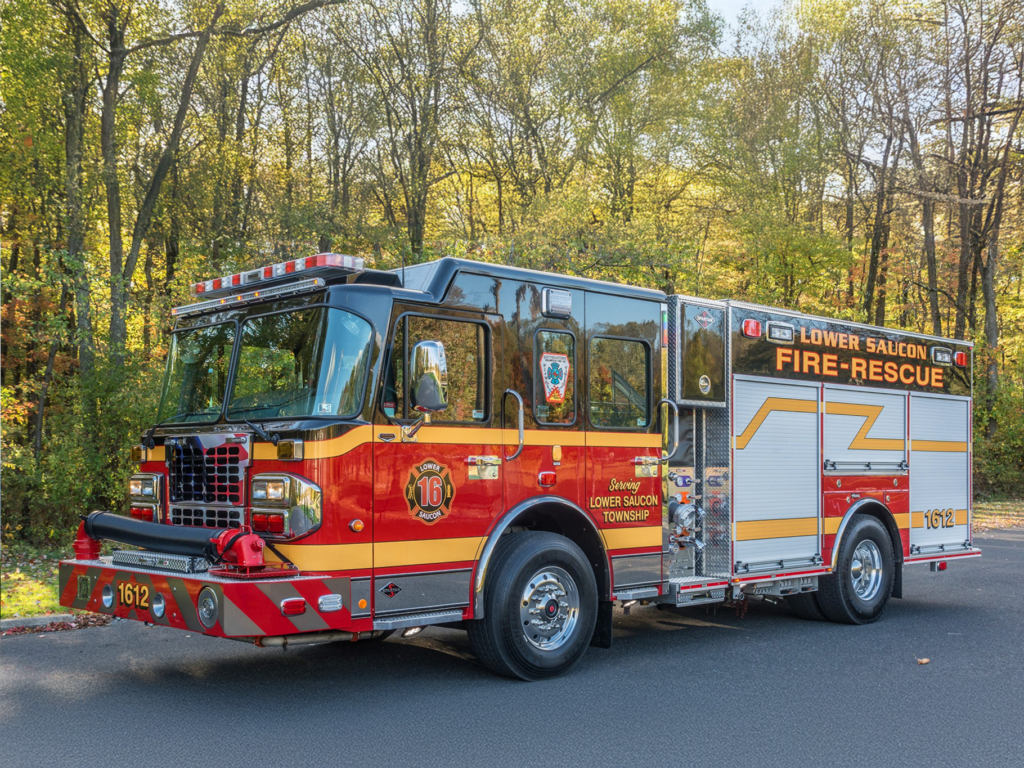

IPS Pumper
The NXT pumper offers fire departments a powerful pumper in a more compact design, making it one of the most versatile pumpers in the industry. Its tight turn radius, high horsepower, and maximum water flows are ideal for urban, suburban, and rural challenges. The low-profile pump behind the cab creates extra room and storage in the spacious cab.
FC-94®
The FC-94 chassis meets the requirements of a commercial chassis but delivers more in a custom configuration with unmatched safety, performance, and strength. Purpose built to handle the heavy-duty requirements of pumpers, tankers, and rescues, the FC-94 is an NFPA compliant all-aluminum 94″ wide cab built to keep crews comfortable and safe with high roof lines, flat floors, multiple seat and storage options, and a cramp angle that will deliver superior maneuverability in tight and congested areas.
